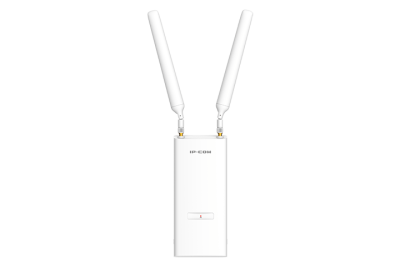

Външна безжична точка за достъп iUAP-AC-M 802.11AC Indoor/Outdoor Wi-Fi Access Point

Model    iUAP-AC-M
Mounting    Pole Mounting and Wall Mounting
Dimensions    194.7*83*42.1 mm
Hardware Specifications
Frequency band    2.4 GHz, 5 GHz
Wireless standards    IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
2.4 GHz data rate    1 - 300 Mbps
5 GHz data rate    6 - 867 Mbps
Ethernet port    1*10/100/1000 Base-TX port
Button    1*Reset
LED indicator    1*SYS
Waterproof level    IP65
Lightning protection    6000 V
Max. power consumption    11.5 W (Full-load)
Power supply standard    IEEE 802.3af/at & 24V, 0.5A Passive PoE
Antenna    2*5dBi，RP-SMA Connector
2.4 GHz Max. output power    26 +/- 1.5 dBm
5 GHz Max. output power    26 +/-1.5 dBm
802.11b RX sensitivity    -93 dBm
2.4 GHz 802.11n (MCS7) RX sensitivity    -72 dBm
5 GHz 802.11a RX sensitivity    -93 dBm
5 GHz 802.11n (MCS7) RX sensitivity    -74 dBm
Software Specifications
Operating modes    AP, Client+AP
Hide SSID    Supported
Max. No. of SSID    2.4 GHz: 8
5 GHz: 4
Max. connected clients    2.4 GHz: 128
5 GHz: 256
WEP    Supported
WPA-PSK    AES/TKIP
WPA2-PSK    AES/TKIP
WPA    Supported
WPA2    Supported
Access control    MAC address-based
Adjustable power transmit    Supported
Frequency analysis    Supported
AP isolation    Supported
Connected client control    Supported
RSSI threshold    Supported
WMM    Supported
VLAN tagging for SSID    Supported
Transmission power    Adjustable by 1 dBm
LED indicator control    Supported
Diagnostics tool    Ping, Traceroute
Scheduled reboot    Supported
Reboot at specified interval    Supported
Management    Web UI
System logs    Supported
Firmware upgrade    Local and AC upgrade
Reboot    Local and AC reboot
Reset    Local and AC reset
Backup configuration    Supported
Restore configuration    Supported
Operating Environment
Default login IP address    192.168.0.254
Default user name    admin
Default password    admin
Operating temperature    -10℃ - 45℃
Operating humidity    (10% - 90%) RH, non-condensing
Storage temperature    -30℃ - 70℃
Storage humidity    (10% - 90%) RH, non-condensing
